€ 239,99
Prijzen incl. BTW
Voor 23:59 besteld, volgende werkdag in huis.
In deze winkel beschikbaar:
Geffen
Oss
Productnummer:
3983317
- Socket: LGA 1700
- Formaat Moederbord: Mini ITX
- Aantal Geheugenslots: 2
- Chipset: Intel B760
- Video aansluitingen: HDMI
- Video aansluitingen: DisplayPort
- Type Geheugenslots: DDR5 DIMM
- Wi-Fi Ondersteuning: Ja

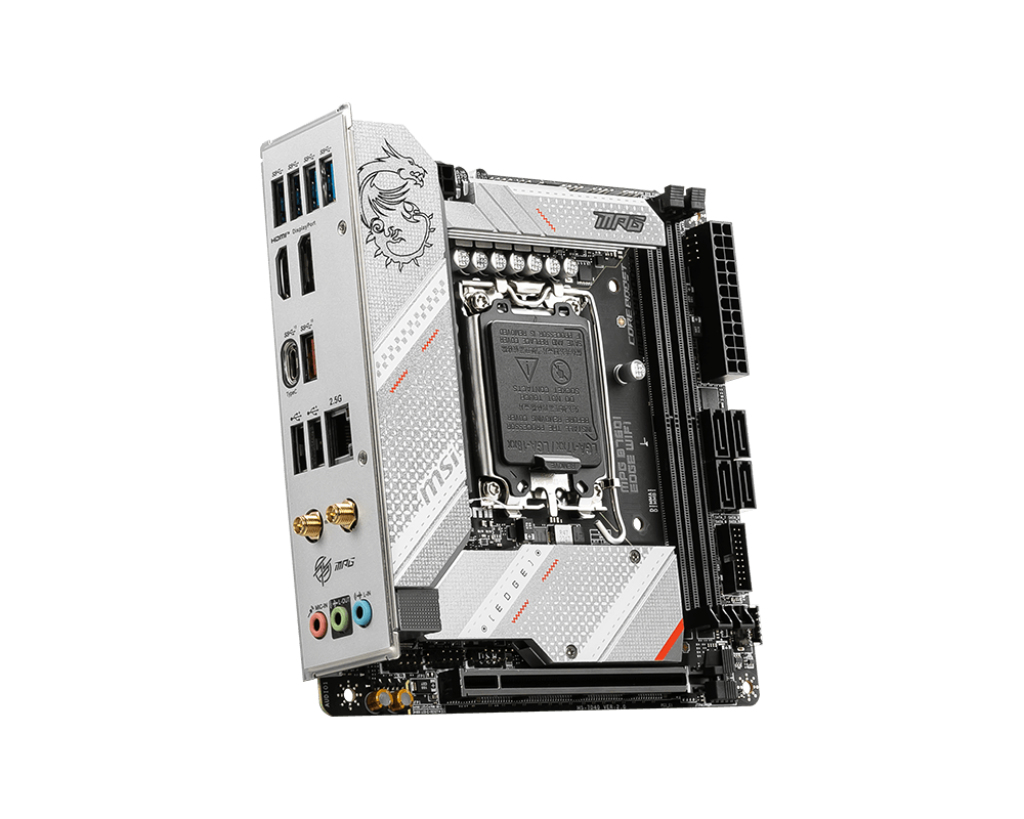

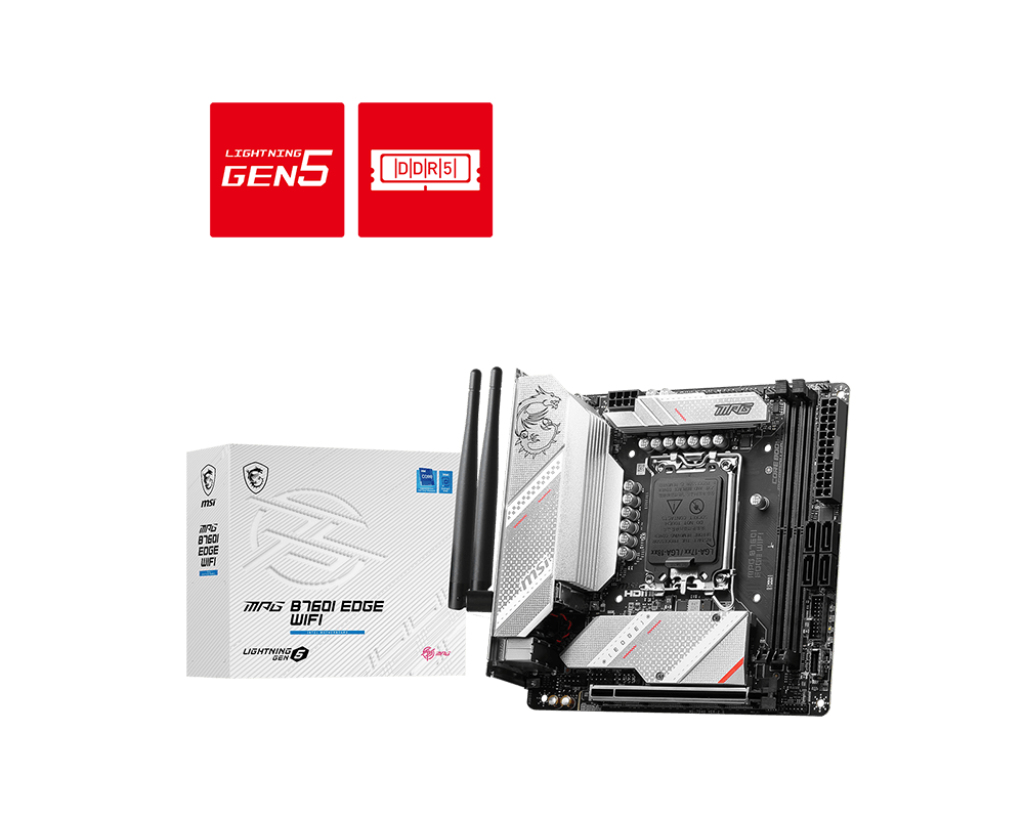

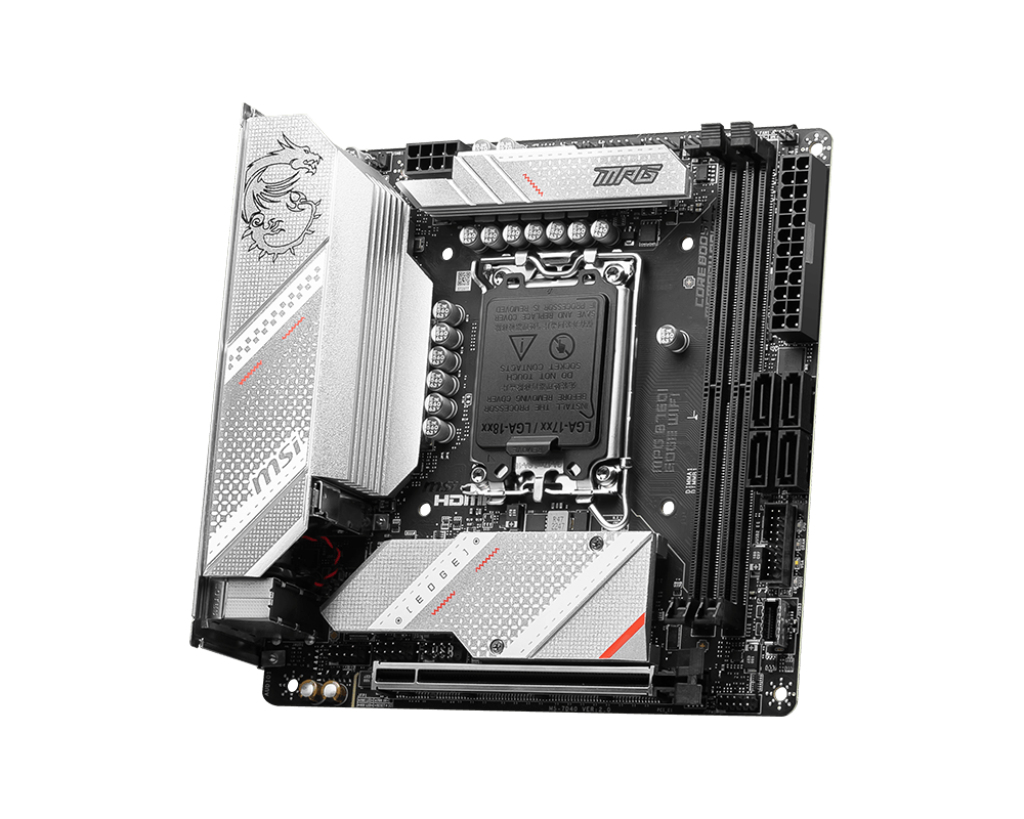

Productinformatie "MSI MPG B760I EDGE WiFi DDR5"
MSI MPG B760I EDGE WIFI. Processorfabrikant: Intel, Processor socket: LGA 1700, Compatibele processors: Intel® Celeron®, Intel® Pentium® Gold. Ondersteunde geheugen types: DDR5-SDRAM, Maximum intern geheugen: 96 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: M.2, SATA III, Soorten RAID: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Wifi-standaard: Wi-Fi 6E (802.11ax), Wi-Fi-standaarden: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax). Component voor: PC, Moederbord form factor: mini ATX, Moederbord chipset familie: Intel
Socket: | LGA 1700 |
---|---|
Formaat Moederbord: | Mini ITX |
Aantal Geheugenslots: | 2 |
Chipset: | Intel B760 |
Video aansluitingen: | HDMI, DisplayPort |
Type Geheugenslots: | DDR5 DIMM |
Wi-Fi Ondersteuning: | Ja |
EAN | 4711377069632 |
---|---|
OEM | 7D40-005R |
Processor | |
Processorfabrikant | Intel |
Processor socket | LGA 1700 |
Compatibele processors | Intel® Celeron®, Intel® Pentium® Gold |
Max. aantal SMP-processoren | 1 |
Supported processor sockets | LGA 1700 |
Geheugen | |
Ondersteunde geheugen types | DDR5-SDRAM |
Aantal geheugenslots | 2 |
Maximum intern geheugen | 96 GB |
Geheugen slots type | DIMM |
Geheugen kanaal | Dubbelkanaals |
Non-ECC | Ja |
Supported memory clock speeds | 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400,5200, 5000, 4800 MHz |
Ondersteunde geheugenkloksnelheid (max) | 7200 MHz |
Opslag-controllers | |
Ondersteunde opslagstationinterfaces | M.2, SATA III |
RAID support | Ja |
Soorten RAID | 0, 1, 5, 10 |
Interne aansluitingen | |
USB 2.0 aansluitingen | 2 |
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 2 |
USB 3.2-connectoren (3.1 Gen 2) | 1 |
Aantal SATA III connectors | 4 |
Aansluiting voor audiopaneel aan voorzijde | Ja |
Voorpaneel-connector | Ja |
ATX Power connector (24-pin) | Ja |
Aansluiting voor CPU koeler | Ja |
TPM connector | Ja |
RGB LED-aansluitrail | Ja |

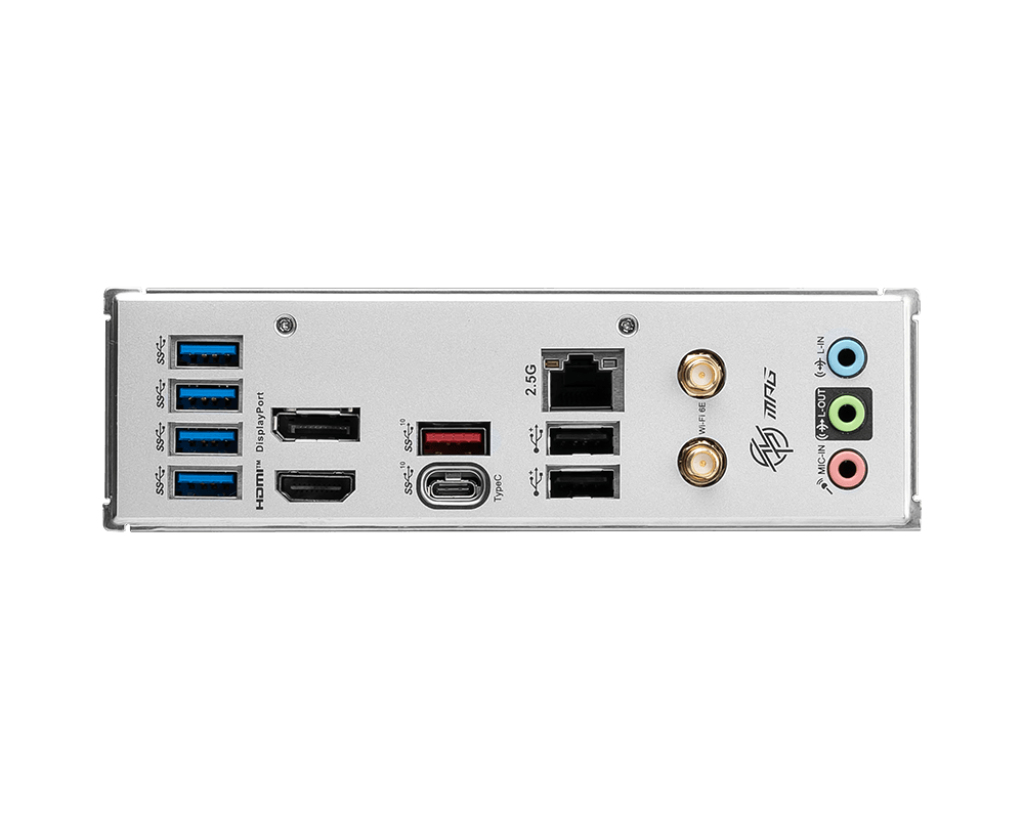

Aansluitingen achterzijde | |
Aantal USB 2.0-poorten | 2 |
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 1 |
Aantal Ethernet LAN (RJ-45)-poorten | 1 |
Aantal HDMI-poorten | 2 |
HDMI versie | 2.1 |
Aantal DisplayPorts | 1 |
DisplayPort versie | 1.4 |
Netwerk | |
Wifi | Ja |
Ethernet LAN | Ja |
Ethernet interface type | 2.5 Gigabit Ethernet |
Wifi-standaard | Wi-Fi 6E (802.11ax) |
Wi-Fi-standaarden | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Bluetooth | Ja |
Bluetooth-versie | 5.3 |
Kenmerken | |
Component voor | PC |
Moederbord form factor | mini ATX |
Moederbord chipset familie | Intel |
Chipset moederbord | Intel B760 |
Audio-uitgangskanalen | 7.1 kanalen |
Audiochip | Realtek ALC897 |
Type stroombron | ATX |
Ondersteunt Windows | Windows 10, Windows 11 |
Uitbreidingsmodules | |
PCI Express x1 (Gen 3.x) slots | 2 |
BIOS | |
BIOS type | UEFI AMI |
Grootte BIOS-geheugen | 256 Mbit |
Systeem Management BIOS (SMBIOS) versie | 3.5 |
Gewicht en omvang | |
Breedte | 170 mm |
Diepte | 170 mm |
