Soort Koeling: Ventilator
Ventilator Diameter: 140mm
Rotatiesnelheid (max.): 1001 - 1500 RPM
Fan Connector: 4-Pin
EAN 9010018100662

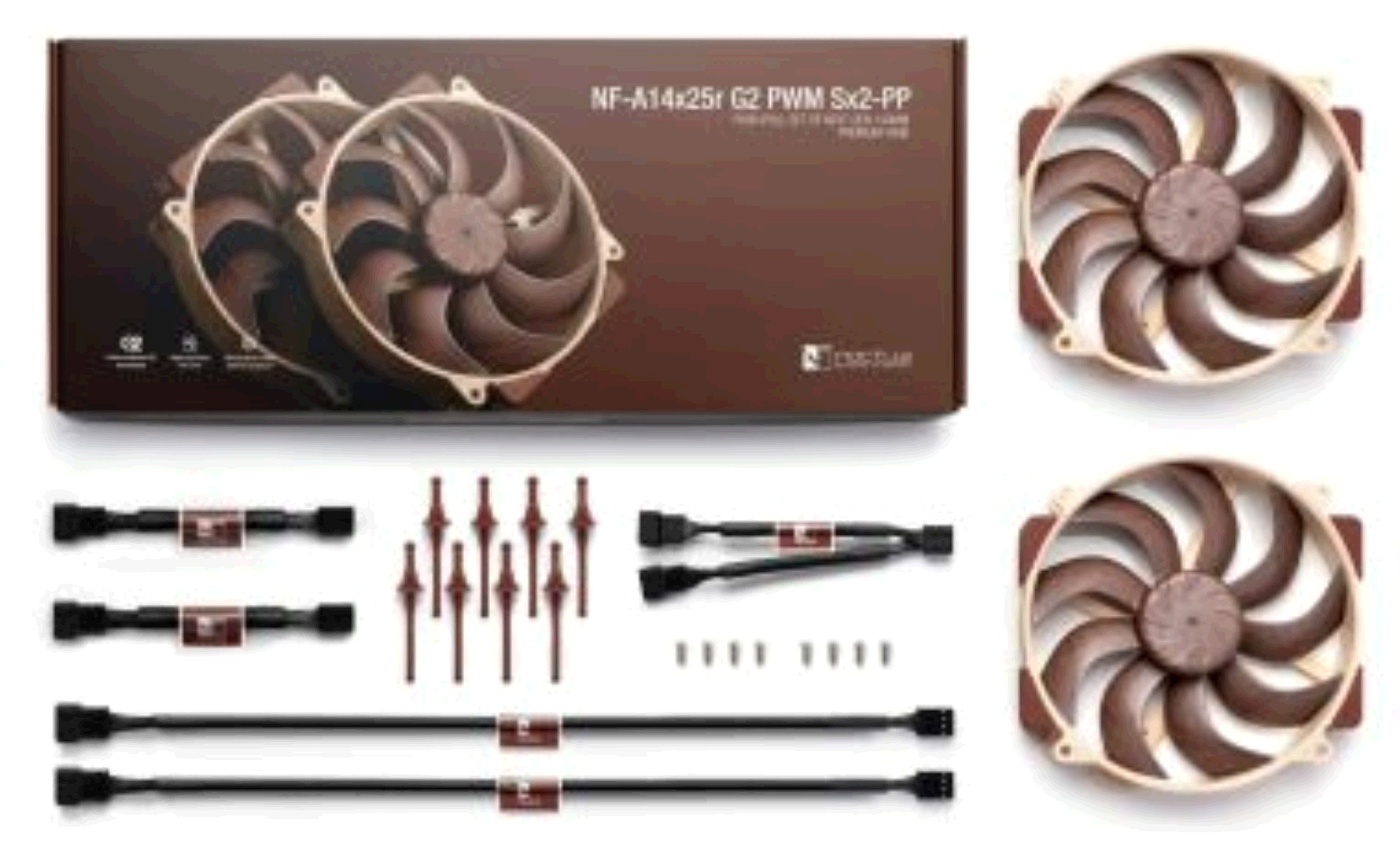

OEM NF-A14x25r G2 PWM Sx2-PP
Prestatie
Geschikte locatie Computer behuizing
Soort Ventilator
Ventilator diameter 14 cm
Rotatiesnelheid ( max) 1500 RPM
Geluidsniveau (hoge snelheid 24,8 dB
Luchtstroom 155,6 m³/uur
Type lager Self-Stabilising Oil-pressure (SSO) bearing
Statische druk ventilator 2,56 mmH2O
Design
Materiaal Vloeibaar-kristalpolymeer (LCP)
Fan connector 4-pin
Energie
Spanning 12 V
Stroom (max.) 0,19 A
Gewicht en omvang
Maten ventilator (b x d x h) 140 x 25 x 140 mm
Technische details
Bearing technologie SSO2
Garantieperiode 6 jaar
Inhoud van de verpakking
Inclusief schroeven Ja
Adapter voor laag geluidsniveau (LNA) Ja
Overige specificaties
Montage gatenpatroon (H x V) 105 x 105 mm
Gemiddelde storingsinterval (MTTF) 150000 uur

Eigenschappen

Soort Koeling: Ventilator
Ventilator Diameter: 140mm
Rotatiesnelheid (max.): 1001 - 1500 RPM
Fan Connector: 4-Pin
