Productinformatie "TP-Link TL-SG1008MP | PoE (AT)"

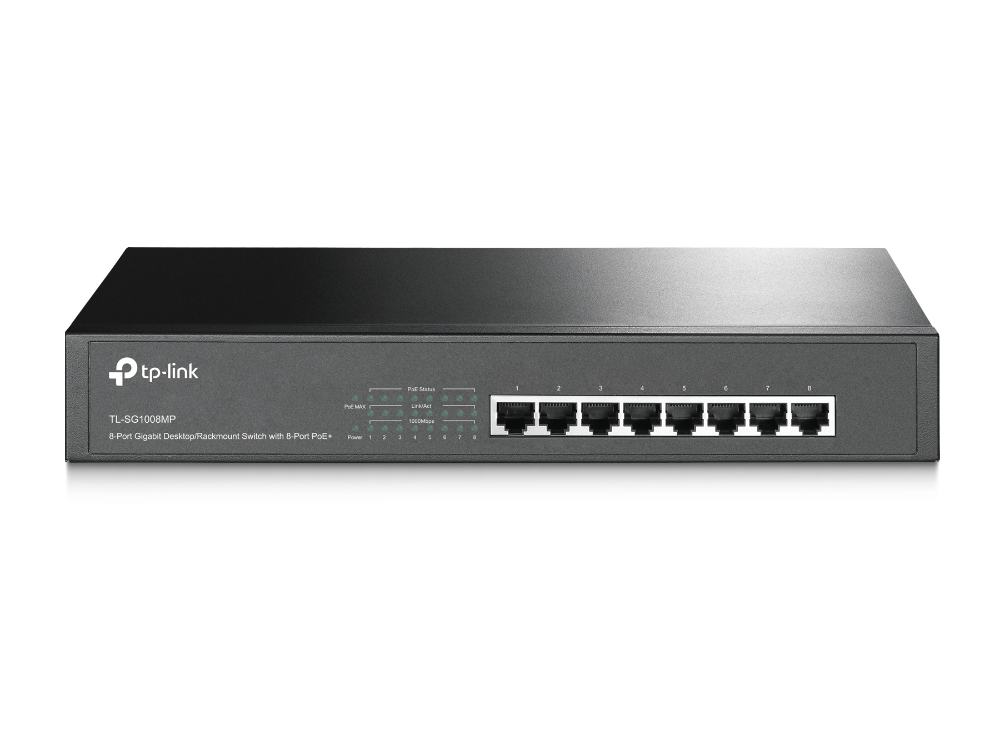

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are no electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.

Overload Arrangement
TL-SG1008MP has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 126W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.

Port Priority Function
*Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 126W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 126W limit., This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use.

Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
Switch Type: Unmanaged
Aantal Switch Poorten: 8
Ethernet Snelheid (max.): 1Gbps (1000Mbit/s)
PoE Ondersteuning: Ja
PoE Type: PoE+ (AT)
PoE Budget Totaal (max.): 141 - 160W
Switch Laag: L2
EAN 6935364086770
OEM TL-SG1008MP
Beheerfuncties
Switch type Unmanaged
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten 8
Type basis-switching RJ-45 Ethernet-poorten Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten 8
Netwerk
Netwerkstandaard IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support Nee
Koperen ethernetbekabelingstechnologie 10BASE-T, 100BASE-TX, 1000BASE-T
Ondersteundende kabel types Cat3, Cat4, Cat5, Cat5e
Full duplex Ja
Half-duplex Ja
Datastroombeheer Ja
Auto MDI/MDI-X Ja
Auto-negotiation Ja
MAC-adres zelflerende functie Ja
MAC-adres zelfverouderende functie Ja
Data-uitwisseling
MAC-adrestabel 4000 entries
Switchingcapaciteit 16 Gbit/s
Verzending snelheid 11,904 Mpps
Store-and-forward Ja
Jumbo Frames ondersteuning Ja
Jumbo frames 16000
Packet buffergeheugen 1,5 MB
Design
Rack-montage Ja
Stapelbaar Nee
Vormfactor 1U
Kleur van het product Zwart
Materiaal behuizing Metaal
LED-indicatoren Ja
Aantal ventilatoren 1 ventilator(en)
Prestatie
Maximum kabellengte 100 m
Energie
Stroombron AC/PoE
Vermogenstoevoer inclusief Ja
AC-ingangsspanning 100 - 240 V
AC-ingangsfrequentie 50/60 Hz
Vermogensverbruik (max) 173,65 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Ja
Aantal Power over Ethernet plus (PoE +)-poorten 8
Totaal Power over Ethernet (PoE)-budget 153 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) 0 - 40 °C
Temperatuur bij opslag -40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V) 10 - 90 procent
Luchtvochtigheid bij opslag 5 - 90 procent
Warmtedissipatie 592,15 BTU/h
Gewicht en omvang
Breedte 294 mm
Diepte 180 mm
Hoogte 44 mm
Verpakking
Meegeleverde kabels AC
Gebruiksaanwijzing Ja
Type verpakking Doos
Rekbevestigingspakket Ja
Breedte verpakking 250 mm
Diepte verpakking 400 mm
Hoogte verpakking 80 mm
Gewicht verpakking 2,11 kg
Duurzaamheid
Naleving van duurzaamheid Ja
Duurzaamheidscertificaten CE, Federal Communications Commission (FCC), RoHS
Logistieke gegevens
Code geharmoniseerd systeem (HS) 85176990
Type PoE PoE+ (AT)
Switch-laag L2
